Small Type Roof Panel Roll Forming Machine, Galvanized Sheet Metal Roof Making Machine
Description
The Q900A small metal roofing machine can roll metal roofing and is widely used in modern buildings.
The roll forming machine has a novel appearance, smooth surface, uniform wave height, high use and automation, low cost, and durability.
Speed (including press cut): 12-15m / min or 15-18m / min optional
We can also provide customized machines.
Process Flow for Metal Roof Making Machine
Uncoiler --- Feeding ---Roll Forming --- Pressing & Cutting --- stacker / Out Table
Machine configurations
(1) Hydraulic decoiler (5T) with coil car --------------------------- 1 unit
(2)Main Roll Forming Machine -------------------------------------- 1 unit
(3) Cutting Device ------------------------------------------------------ 1 unit
(4) Auto stacker --------------------------------------------------------- 1 unit
(9) Electrical System with PLC Control --------------------------- 1 unit
(10) Hydraulic System ------------------------------------------------ 1 unit
Application
The finished products are widely used in modern buildings such as airports, parking lots, stadiums, exhibition halls, and theatres.
| Material Width | 1000mm |
| Rolling Speed | 12-15m/min
(product length automatic control) |
| Rolling Thickness | 0.3-0.6mm (235Mpa)
(Galvanized Sheet) |
| Control System | PLC (Siemens or Schneider) |
| Roller Stations | About 9 stations |
| Diameter of Shaft | 45#steel |
| Motor Power | Main Power: 5.5KW
Hydraulic power: 3KW |
| Way Of Drive | By chain, one complete chain |

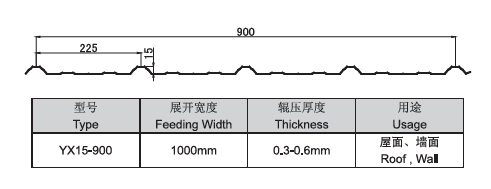

Profile Drawing
